1/4" Mat. Fire Welded Strap Hinges

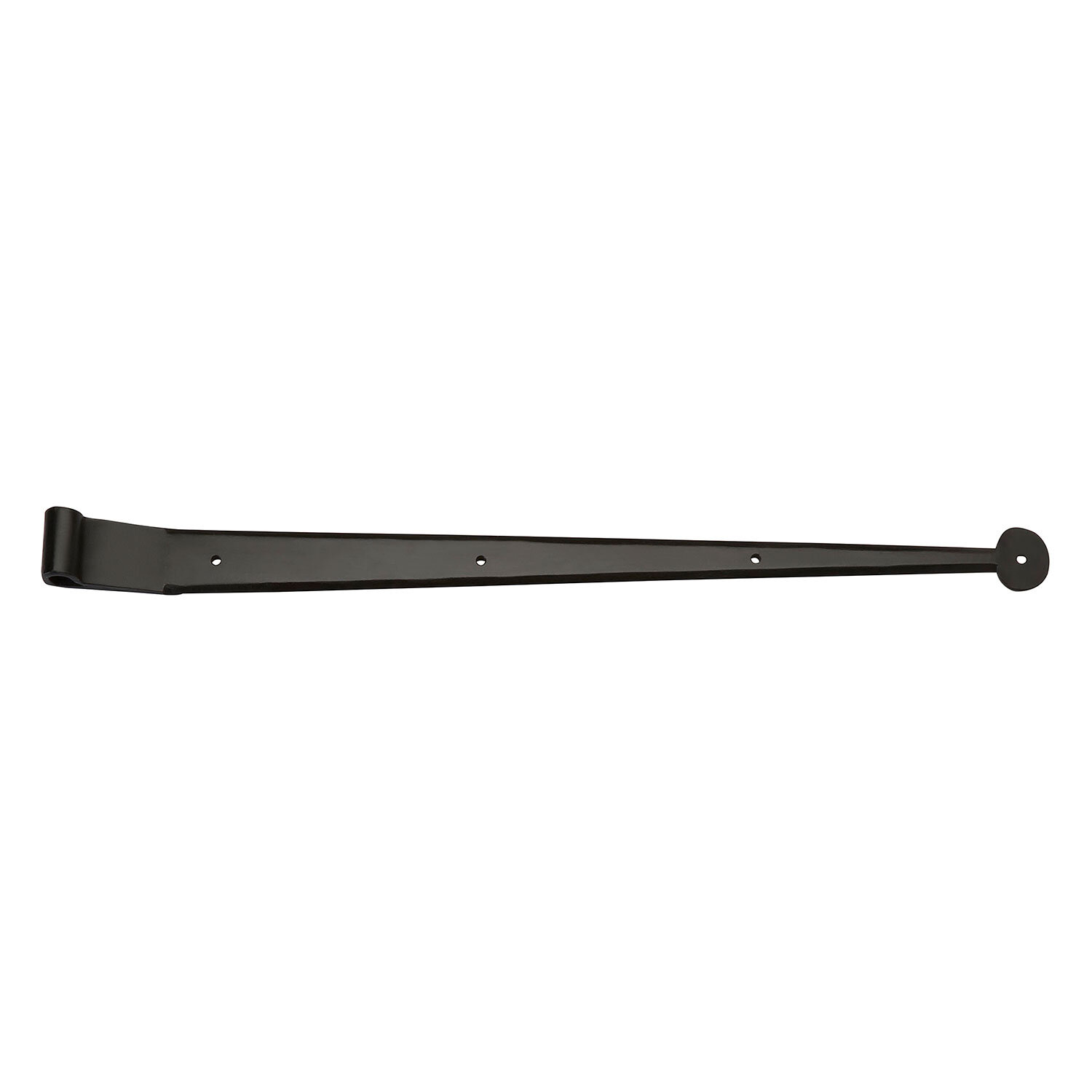

Our premium quality 1/4” material hand forged fire welded hinges are recommended for all types of exterior and heavy duty interior doors. These heavy duty hinges show great forged detail and texture on the surface of the hinge. Shown with standard bean end. Other end styles available upon request. Larger hand forged strap hinges for barn and carriage doors available here.

Sizes & Product No.:
22” Length
H-14FW-22

28” Length
H-14FW-28

30” Length
H-14FW-30

34” Length
H-14FW-34

48” Length
H-14FW-48

Pin - 5/8" Diameter
Barrel Width - 2"
3/4" Offset Standard

Available Finishes:
All Iron Finishes
FBWX - Flat Black and Waxed (shown)

References:
Hand Forged Strap Hinge Reference Guide
Strap Hinge for Flush Mount Installation Guide

H-14FW-22
Cut Sheet
Line Drawing

H-14FW-28
Cut Sheet
Line Drawing

H-14FW-30
Cut Sheet
Line Drawing

H-14FW-34
Cut Sheet
Line Drawing

H-14FW-48
Cut Sheet
Line Drawing
