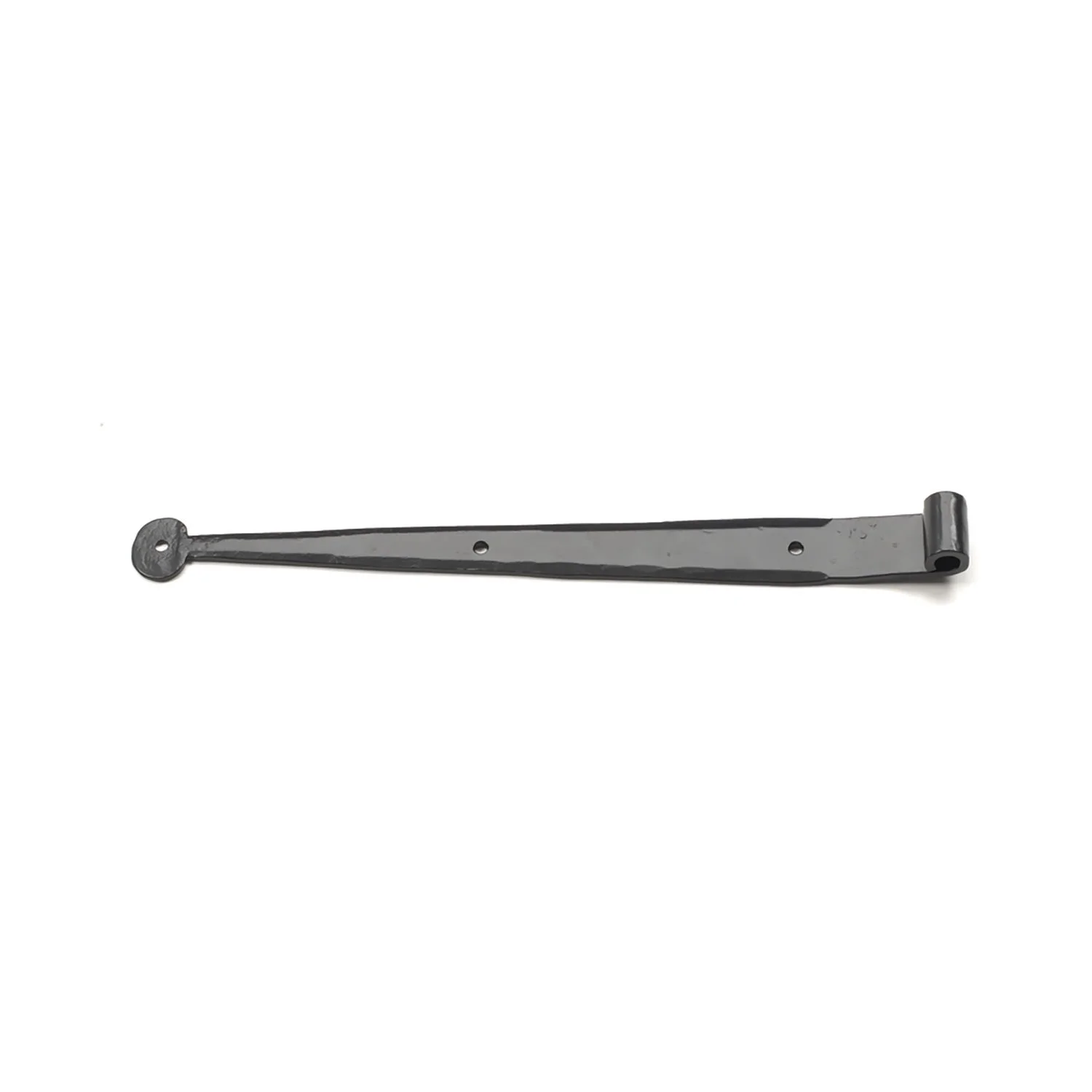

3/16" Mat. rolled barrel Strap Hinges

Cost effective 3/16" material rolled barrel strap hinges are ideal for light duty doors and secondary locations.

Available in bean end style only.

Sizes & Product No.:
18” Length
H-316RB-18

22” Length
H-316RB-22

28” Length
H-316RB-28

30” Length
H-316RB-30

34” Length
H-316RB-34

Pin - 1/2" Diameter
Barrel Width - 1 1/2"
3/4" Offset Standard

Available Finishes:
FBWX - Flat Black and Waxed (only)

References:
Hand Forged Strap Hinge Reference Guide
Strap Hinge for Flush Mount Installation Guide
Cut Sheet

Line Drawing - H-316RB-18
Line Drawing - H-316RB-22
Line Drawing - H-316RB-28
Line Drawing - H-316RB-30
Line Drawing - H-316RB-34
